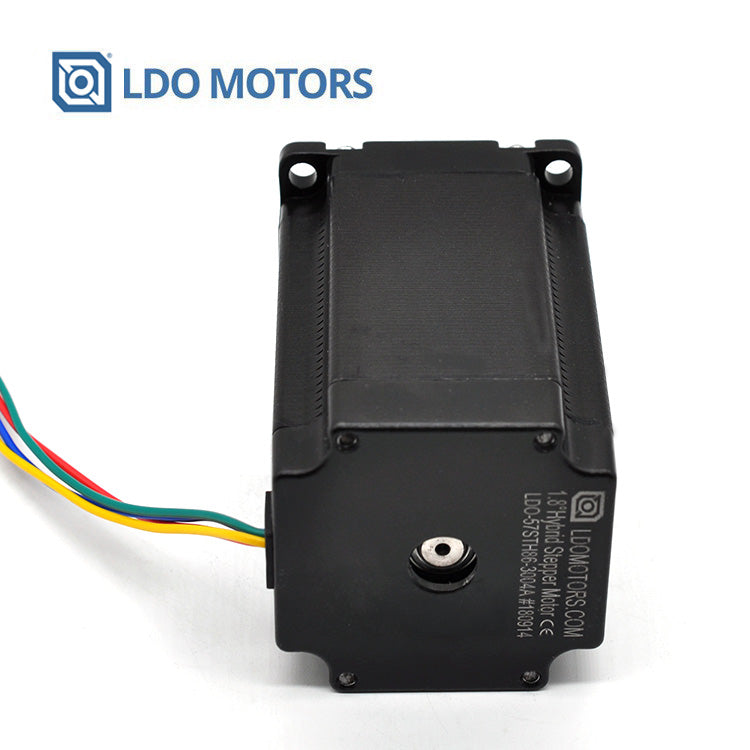

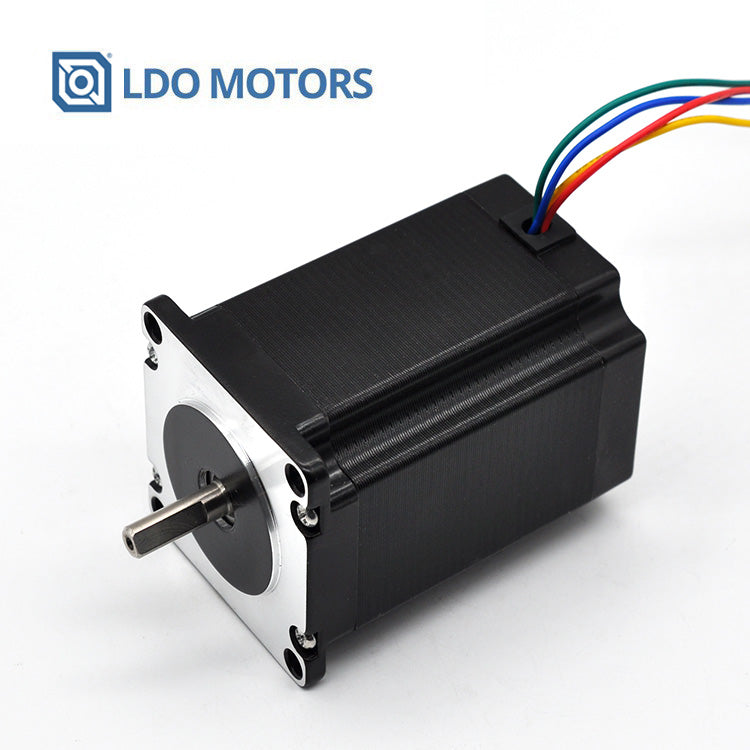

Nema 23 Stepper Motor - High Torque - 1.8degree/step, 345oz-in

Nema 23 Stepper Motor - High Torque - 1.8degree/step, 345oz-in

SKU:HW1462EC

Be the first to review this product

A powerful High Torque Nema 23 Stepper by LDO manufacturer.

€37.99

Qty:

Add to Compare

Product Description

Details

A powerful High Torque Nema 23 Stepper by LDO manufacturer.

Technical info:
-Manufacturer: LDO
-Model: LDO-57STH86
-Holding Torque: 24.5 kg/cm - 345oz-in
-Shaft: 6.35mm / 1/4"
-Voltage rating: 3.0V
-Stepping angle: 1.8 degrees
-Current rating: 3.0A/Phase
-Connector type: Pre-tinned 8cm (4 wires, you can use our Xtension connectors, or solder/join directly)

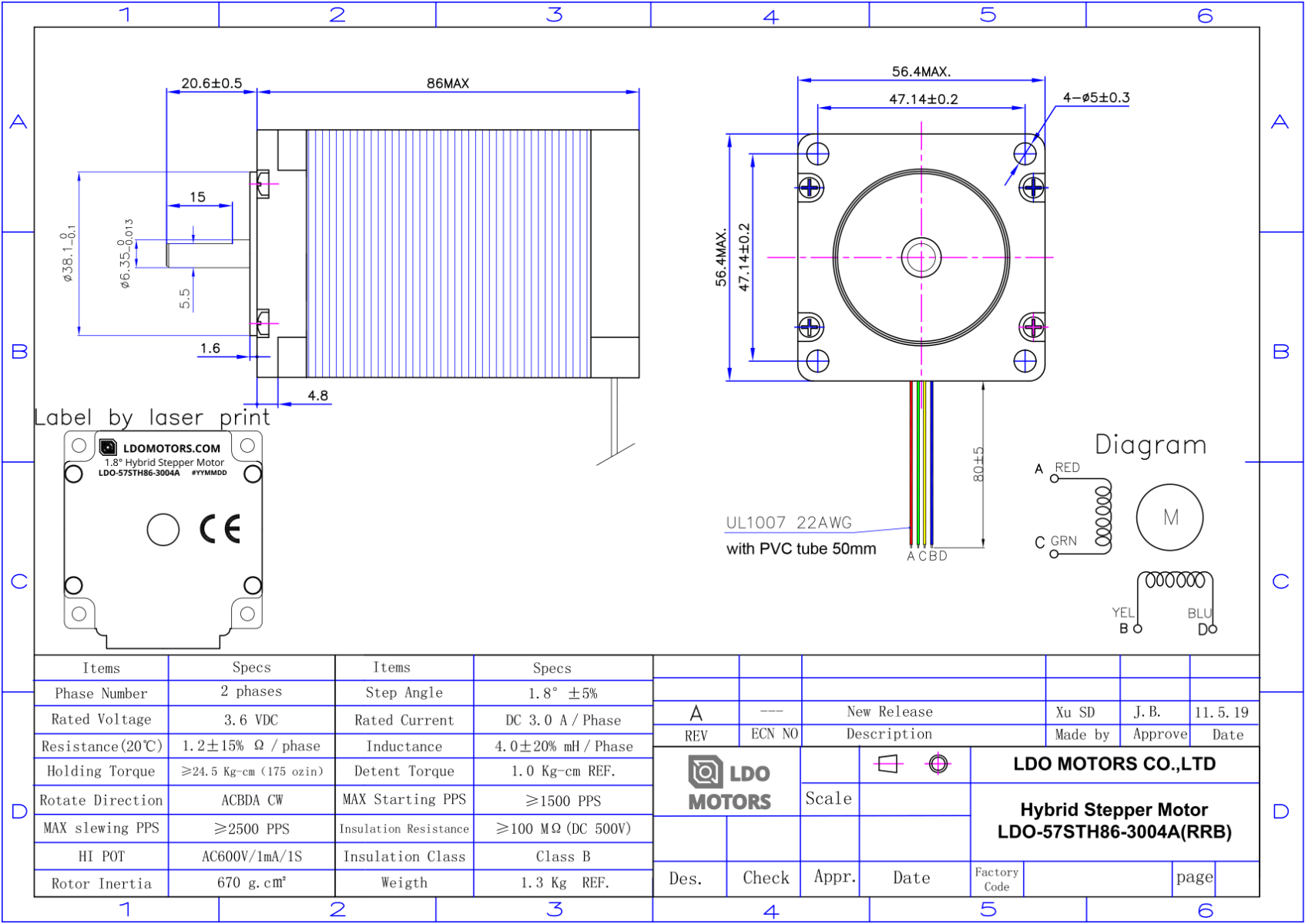

For more specs, see spec sheet in the images section of this product!
