Nema 17 Stepper Motor - LDO 1.8º/step (Select Type)
Nema 17 Stepper Motor - LDO 1.8º/step (Select Type)
Nema 17 Stepper Motor - LDO 1.8º/step (Select Type)

Nema 17 Stepper Motor - LDO 1.8º/step (Select Type)

€0,00
Sold out

Shipping calculated at checkout

Type:Default Title

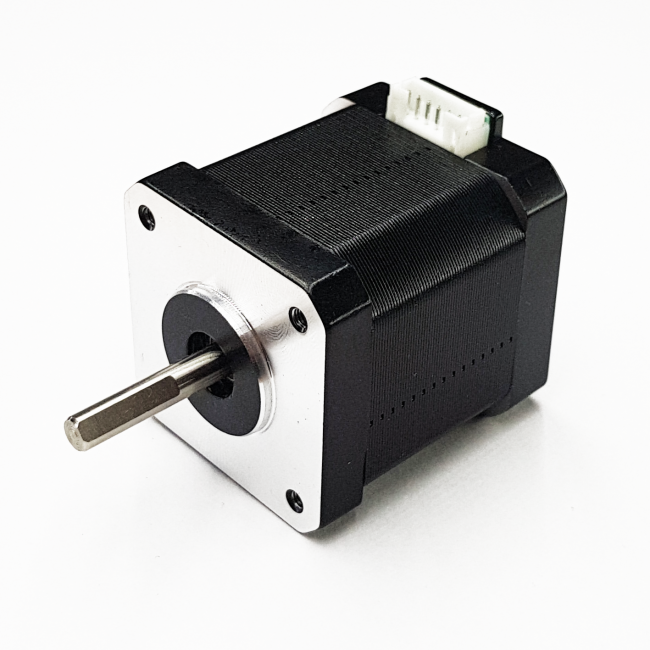

The most powerful 48mm Nema17 on the market! A powerful general purpose 1.8º Stepper, this motor is a NEMA 17 motor that produces a massive 5.5Kg-cm (or 4.4Kg-cm for the shorter 40mm motor) of holding torque(76oz-in, or 61oz-in for the shorter 40mm motor), by LDO manufacturer.

Technical info for 48mm motor body version: - Manufacturer: LDO - Model: LDO-42STH48-2504AC - Holding Torque: 5.5 Kgf-cm - 76oz-in - Shaft: 5mm - Voltage rating: 3.1V - Stepping angle:1.8 degrees - Current rating: 2.5A/Phase - Connector type: JST PH-6

Technical info for 40mm motor body version: - Manufacturer: LDO - Model: LDO-42STH40-1684AC - Holding Torque: 4.4 kg/cm - 61oz-in - Shaft: 5mm - Voltage rating: 2.8V - Stepping angle:1.8 degrees - Current rating: 1.68A/Phase - Connector type: JST PH-6

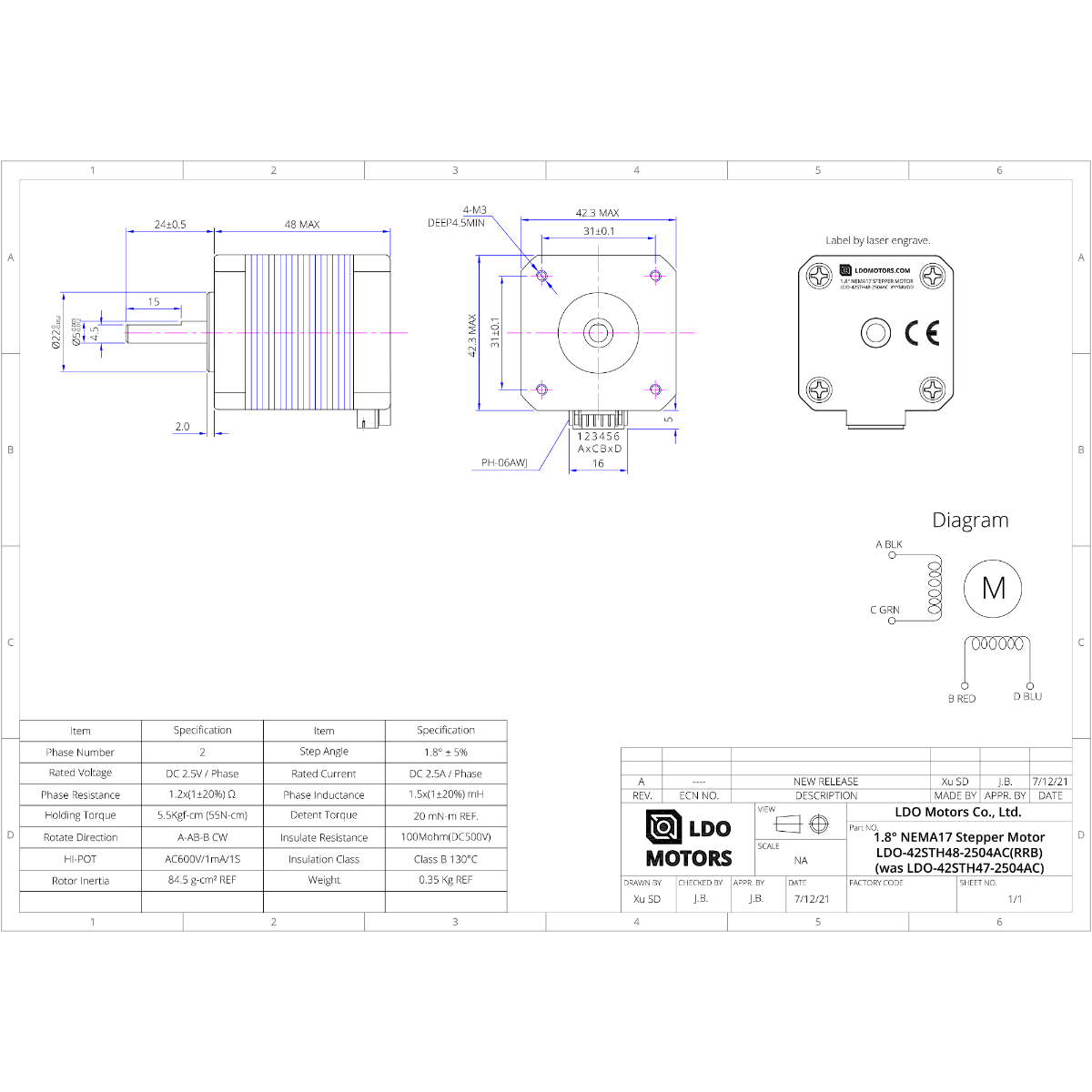

For more specs, see spec sheet in the images section of this product!
